The three main merits that we typically focus on when discussing pump performance are horsepower, flow rate, and head pressure. However, did you know that 70% of pump failures are attributed to issues with shaft sleeves and mechanical seals?

According to the Hydraulic Institute’s “Pump Life Cycle Costs” report, these two minor parts are among the most frequent causes of system failures.

So, are you paying enough attention to your pump’s seal and sleeve?

Selecting the ideal pump sleeve and seal is a crucial task when working with high-end machinery, such as Armstrong and Ebara pumps. For these components to withstand pressure, corrosion, and friction without failing, they must function flawlessly together.

Let’s break down what makes seal and sleeve compatibility so essential and how you can make the best choice for your system.

What is the function of a pump sleeve?

·        It protects the shaft from wear and corrosion caused by the mechanical seal and the pumped fluid.

·        It helps extend the life of both the shaft and the seal.

·        In some systems (especially in HVAC or process cooling), replacing the sleeve is easier and cheaper than replacing the whole shaft.

Sleeves for Armstrong pumps are made from corrosion-resistant materials, usually bronze or stainless steel, and have precise clearance.

Seal Selection for Armstrong Pumps: Compatibility, Design, and Performance

The performance of Armstrong pumps in hydronic and HVAC systems is well known, particularly in significant buildings and industrial facilities. The problem is that they require seals that are compatible with their particular shaft diameters, operating speed, and pressure conditions.

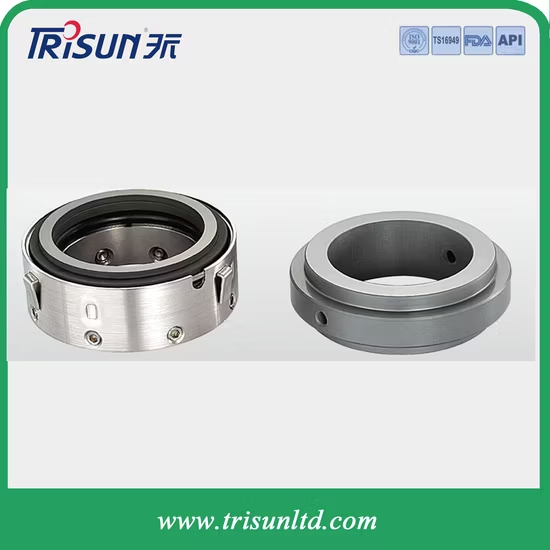

·        Armstrong pump seals are often cartridge-type, making them easy to install and replace.

·        Many are designed for low-maintenance, high-efficiency operation, but still need proper sleeve compatibility to prevent seal face misalignment.

·        Premature wear or worse, system failure, can result from using generic seals and sleeves.

It is recommended always to double-check the shaft size, operating temperature, and pressure rating when replacing seals in Armstrong pumps.

Seal Selection Guidelines for Ebara Pump Systems

From clean water to light chemicals, Ebara pumps are renowned for their efficiency in commercial and industrial facilities, as well as their stainless steel construction and compact design.
However, sleeve and seal tolerances are tighter due to that compact design.

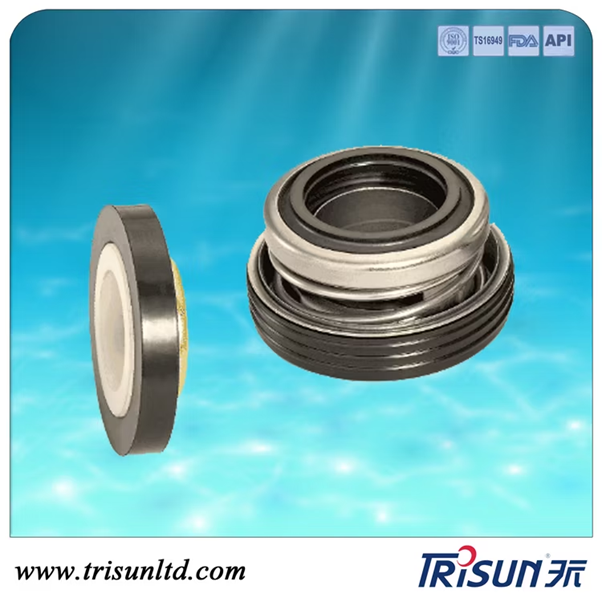

·        Ebara mechanical seals must handle high RPMs and varying media, depending on the model.

·        Many models utilize single-spring seals or component seals; however, some configurations benefit from upgraded cartridge-style seals.

·        Pairing with the right pump sleeve reduces shaft wear and improves seal face alignment.

When pumping aggressive or hot media, ask your supplier about using a sleeve with additional surface hardening or coatings.

Final Thoughts

Reliability depends on choosing the correct seal and sleeve combination, whether you are using an Ebara pump in a processing facility or an Armstrong pump in a healthcare setting. These act as your defence system against breakdowns.

At Trisun Ltd, we supply OEM-equivalent and custom mechanical seals, pump sleeves, and critical components for Armstrong, Ebara, and many other global brands. Our team is ready to help you select precisely what you need for your pump, process, and peace of mind.

Let’s talk today!
